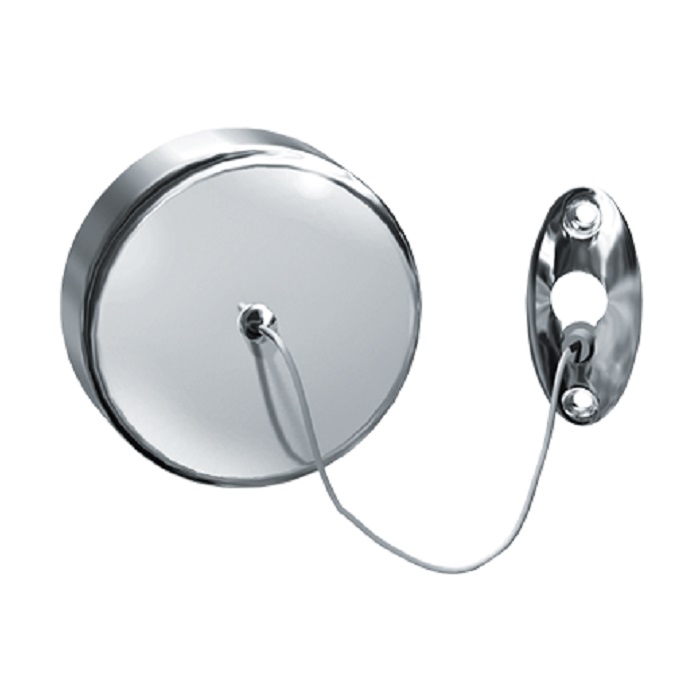

American Specialties Inc. (ASI) 0712 Surface Mounted Retractable Clothes Line
is fabricated of 18-8 alloy type 304 stainless steel bright finish.
Includes cord cover plate, locking nut and knob retainer and Nylon gaskets to
isolate flanges from finished wall surface. This retractable clothes line
includes a spring actuated reel with 72" vinyl covered cord. The cord knob
is white vinyl. The locking knurled nut to hold stretched line taut is
also provided on cord cover. Installs over bathtub or in shower. The clothes
line is retracted into the cover plate mechanism by first releasing the locking
nut and then removing the cord knob from the knob retainer, thereby allowing the
spring mechanism to automatically retract the clothes line.
Dimensions
Cord Cover Plate: 3-5/8" DIA x 6’0" MAX.
Cord Length (92
x 1829 mm) 6ft. Max Space between opposite faces of finished walls.
Nylon
Oval Disk: 1-1/4" W x 2-5/8" H (32 x 67 mm)
American Specialties, Inc. 10-0712
