  • Antique Bronze Oiled Finish
  • Solid Brass
  • Ball Bearing Stop Guide
  • Angle Door Protector Included
  • Arm Length : 5"
  • Sheet Metal Screws Included
  • Conforms to ANSI/BHMS 156.16

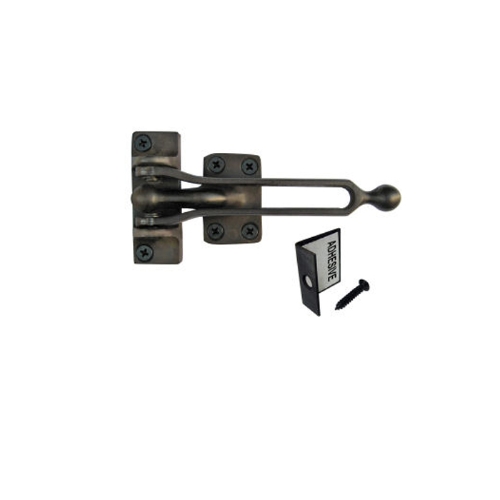

Cal-Royal SBDG00-US10B Oil Rubbed Bronze Swing Bar Door Guard w/ Angle Protector



 Price Each


The Cal-Royal SBDG00-US10B oil rubbed bronze swing bar door guard is solid brass and comes with the angle door protector.  For use on doors that are flush with frames.  When installed correctly, the angle door protector helps to prevent damage to the door when guest use the swing bar door guard to hold the door open.  Sheet metal screws included for installation.  This swing bar door guard comes in a verity of architectural  finishes.

The solid brass bar, interlocking with the ball on the strike plate on the door, permits the door to be slightly opened to allow viewing.  The hinged bar allows the door guard to be positioned 180° away from the door when not in use.  Strike plate is designed to prevent the solid bar from marring the inside of the door when in use.

acrobat  Technical Data acrobat Architectural Finishes acrobat Hardware Catalog

A door guard shim can be used when face of door is recessed (uneven) from face of jamb.  Cal-Royal DGS100 Door Guard Shim fits under door guard strike plate which attaches to the door.  Each shim is 1/8" think.

Overall Dimensions: 5" x 2 5/8"

Cal-Royal Products, Inc. Model SDBG00-US10B

Comparable to IVES 482B
