  • Cannot Rust
  • Easily Cleaned
  • Natural Ventilation
  • Pitched Drainage
  • Dent Proof
  • Fire Retardant
  • Easy Installation
  • No Padlock Required
  • No Glass to Shatt
  • No Paint to Fade or Chip
  • All Sizes in Red or White
  • No Sharp Corners
  • High Density Injection Molded Hammer (optional above)
  • Stainless Steel Breaker Bar (optional above)
  • "Break Panel" Decal CL-415 (optional above)
  • Felony Warning Decal CL-416 (optional above)
  • Extinguisher Tray (optional above)
  • Made in the U.S.A.

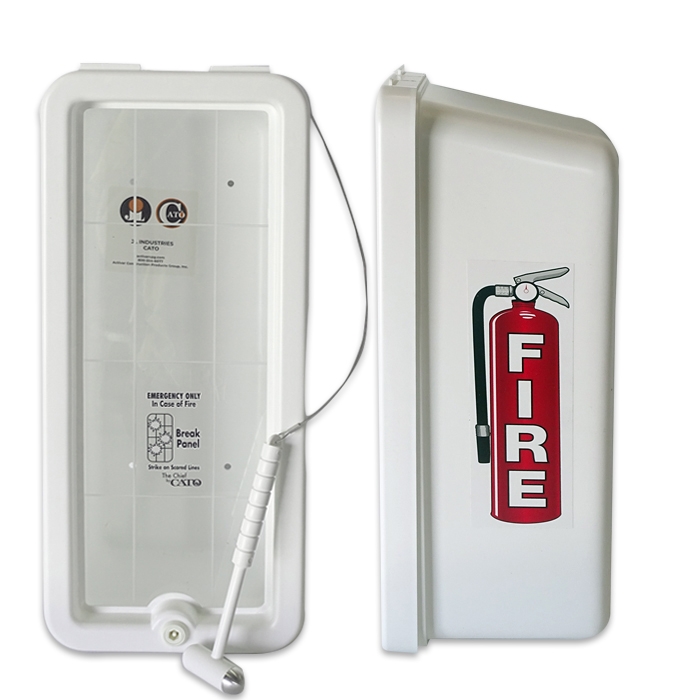

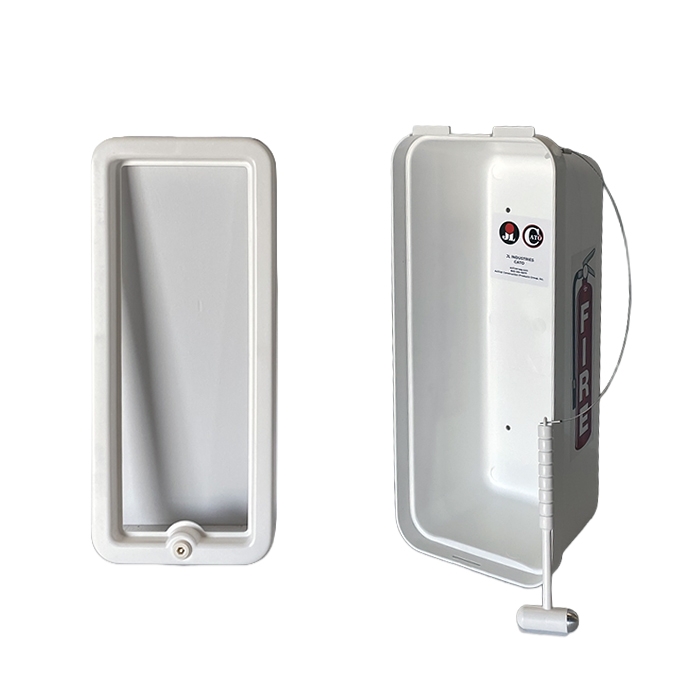

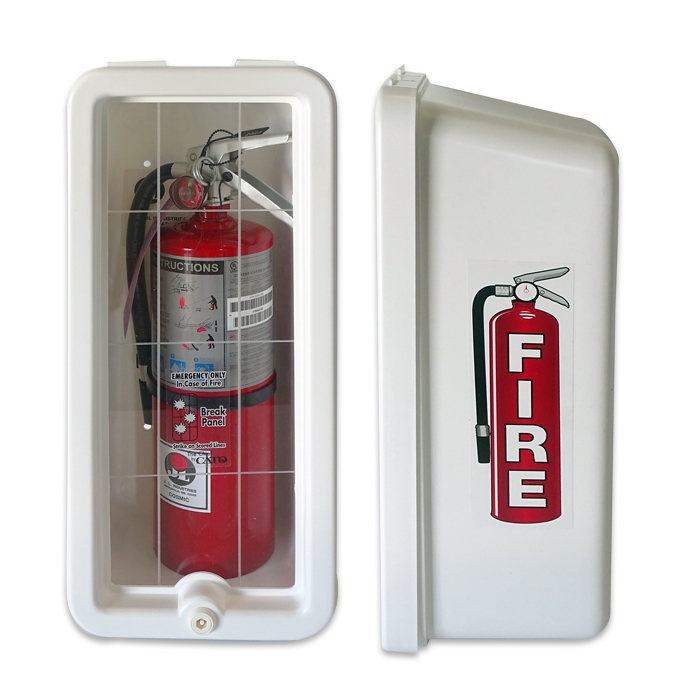

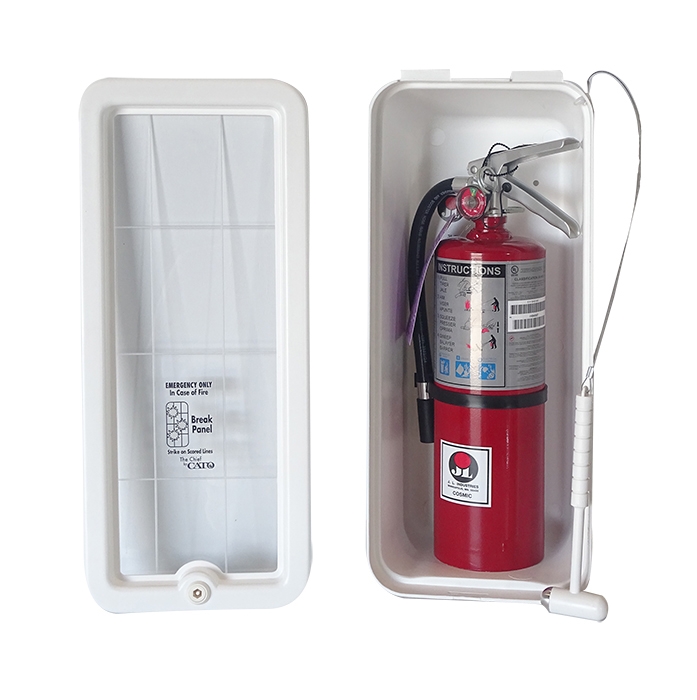

CATO 10501-H Chief Plastic 5 lbs. Fire Extinguisher Cabinet - White

Description

The CATO 10501-H Chief plastic 5 lbs. fire extinguisher cabinet in red is design to hold a 5 lbs. fire extinguisher.  Because there are no metal parts, this cabinet can not rust.  CATO offers an extinguisher tray (optional above) to separate the extinguisher from moister at the bottom of the cabinet.

The CATO 10501 fire extinguisher cabinet, also know as the CATO PC 105-5 WWC, is manufactured by Cato, Inc. with body and frame injection molded white virgin high-impact crystal polystyrene of .110 wall thickness with ultra-violet inhibitors, virgin acrylic Plaskolite® panel of .80 thickness, ABS lock and key, polypropylene plastic injected molded hammer with flexible torsion, ribbed grip surface and clear nylon-jacketed stainless steel mechanical cable (optional above).  Stainless steel breaker bar (optional above).

  Technical Data   Catalog

Made in USA

    Warranty

Available Sizes

Lock & Key
The all-plastic ABS cam lock and key eliminates corrosion making the CATO Chief the first cabinet with a non-seize lock.  This lock will never rust.

Hammer
White injection molded plastic hammer with flexible torsion and ribbed grip with a stainless steel clear nylon jacketed mechanical cable used to break the clear acrylic panel in case of fire (optional above).

Breaker Bar
Stainless Steel Breaker Bar with a stainless steel clear nylon jacketed mechanical cable used to break the clear acrylic panel in case of fire (optional above) .

Safety
With no sharp corners or breakable glass, the Chief Plastic Fire Extinguisher Cabinet is one of the safest cabinets available.

Plastic Fire Extinguisher Cabinets Dimensions

Model # Interior Tub Overall Outside Trim With Cover Outside
  W H D W H D W H D
Plastic Fire Extinguisher Cabinets
CA-10501 6" 16 3/4" 5 3/8" 8" 19" 6 3/8" 8 1/4" 19 1/4" 6 3/4"
CA-11001 6 3/4" 20 1/2" 6" 9" 23" 7" 9 1/4" 23 1/4" 7 1/4"
CA-12001 9" 26" 8" 11" 28" 9" 11 1/2" 28 1/2" 9 1/2"



Alternate Part Numbers
PC-105 Red CATO Chief
PC-105-5 (WWC) 10501
PC-105-10 (WWC) 11001
PC-105-20 (WWC) 12001



Compare to:

  • Strike First PC-105-5
  • Brooks FT5PW  FireTech™

Cato 10501-H
