  • All in One Mirror Cabinet, Paper Towel Dispenser and Foam Soap Dispenser
  • Hands Free Automatic Soap Dispenser holds 1.5 Gal of Foaming Soap
  • Paper Towel Dispenser hold up to 500 Paper Towels
  • Features Backlit Icons Indicating Soap and Paper Towel Functions
  • Mirror is made from 1/4" (6 mm) thick frameless tempered glass conforming to ASTM C-1048
  • Designed for Elegance and Safety in Mind, Concealing Consumables in a Cabinet Made from Type 304 Stainless Steel.

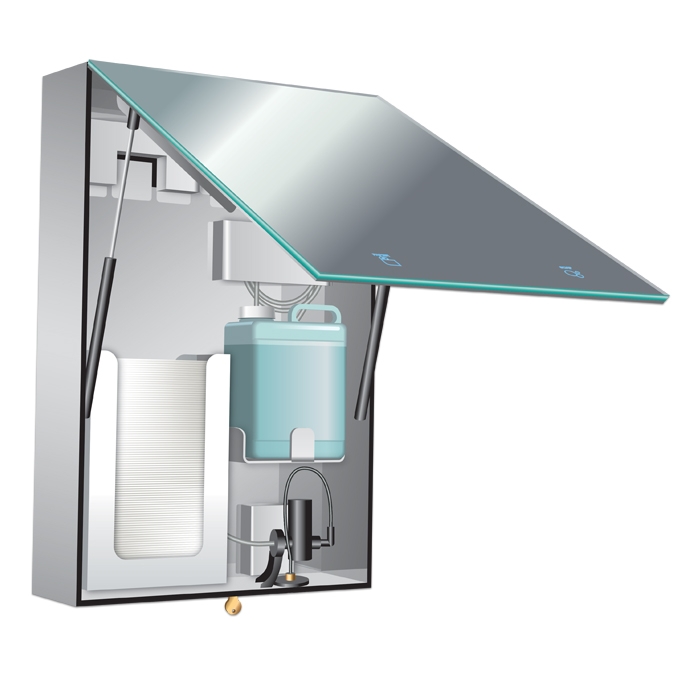

ASI 0663-T Velare™ BTM System– Stainless Steel Cabinet With Frameless Mirror, Foam Soap Dispenser and Paper Towel Dispenser
Description

Velare™ Behind the Mirror (BTM) is designed for elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The mirrored door cabinet features backlit icons indicating the functions on the bottom panel of each module. The mirror is made from 1/4" (6 mm) thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.

The mirrored door is attached to the cabinet using a full width 3/16" diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.

This wall mounted stainless steel cabinet conceals a hands-free automatic foam soap dispenser with a 1.5 gal (6 L) capacity and paper towel dispenser with a 500 towel capacity. Mirror backlights operate on 100 – 240 VAC provided to quad (double-duplex) outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adapters are plugged into at installation.

Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.  Viscosity Range (mPa·s or cP): 1 – 100 pH Range: 5.5 ~ 8.5

Matching filler modules (FM) are available as spacers between cabinets.

Dimensions:
23-5/8" x 35-7/16" x 7-9/16" (600 x 900 x 192)

 Technical Data   Installation Instructions   Product Warranty
a ASI Catalog adobe Buy American Act Catalog adobe Buy American Act
  Velare Sales Sheet Troubleshooting Guide

American Specialties, Inc. (ASI) Model: 10-0663-T
