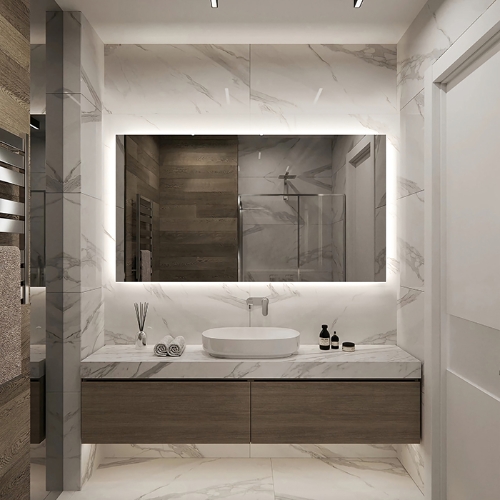

The ASI 0640 Frameless polished edge mirror with integral mounting frame and border LED halo lighting is made of 5/32" [4 mm] thick plate
glass. Hard wired, concealed LED lighting system operates on 100/240 VAC 50/60
Hz. Turned on-off by an external wall switch (by others). Unit can be mounted
horizontally or vertically without additional brackets or adaptations to
mounting provisions. Power cord is included for use by owner if appropriate
socket is provided on wall concealed by mounting frame of mirror and
is 34" [86] long with 3-prong USA pattern plug and bare wires for connection to
hard wiring in LED control box.
Installation:
Keyhole mounting slots are provided in long
and short sides of back frame. Mirror is to be hung on pre-installed pan head
screws (included) to be retained by screw heads engaged into the slots. Mounting
screws must be tightened into appropriate wall anchors or blocking to suit site conditions adequate to support weight of mirror. Power
must be provided to allow hard wiring of LED control
circuitry. Wall switch (not included) should be installed to control
on-off function. Face of mirror will be 1-3/4" [45] from wall when installation
is completed.
Standard Sizes for ASI
0640
|
| Part Number |
Size: Width x Height |
Lumens |
Weight lbs. |
| 06402436 |
24" x 36" |
2352 |
42 |
| 06403036 |
30" x 36" |
2640 |
53 |
| 06404836 |
48" x 36" |
3514 |
84 |
| 06406036 |
60" x 36" |
4128 |
105 |
American Specialties, Inc. Model:
ASI 0640-2436
ASI 0640-3036
ASI 0640-4836
ASI 0640-6036
