  • Pull to Open Hinged Door
  • Holds up to a 10 lb. Extinguisher
  • Surface Mounted
  • Stainless Steel Hinges
  • Clear Panel Door
  • Extinguisher Tray (optional above)
  • 2 "FIRE" Decals CL-401 (included)
  • Made in the U.S.A.

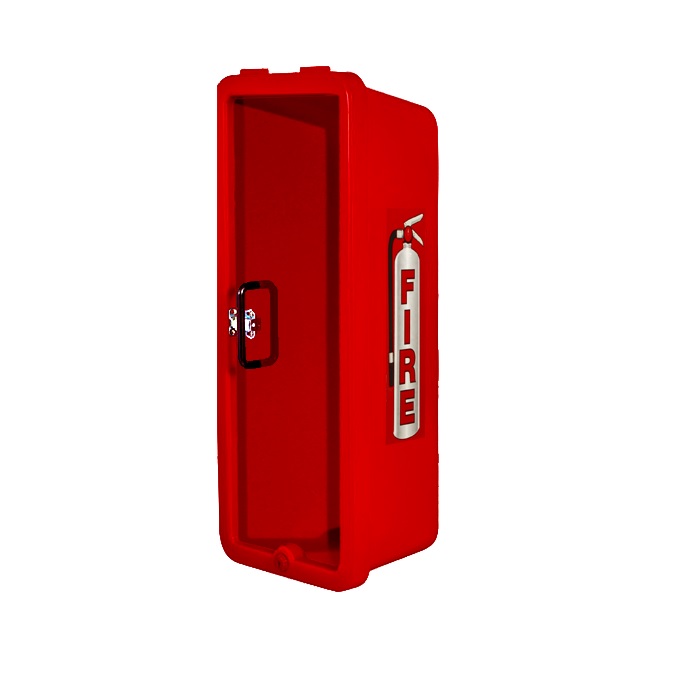

CATO 105-10 RRC-Z Pull to Open Chief 10 Lbs. Plastic Fire Extinguisher Cabinet - Red
Description
The CATO 105-10 RRC-Z pull to open Chief 10 Lbs. plastic fire extinguisher cabinet in red is manufactured with a body and frame injection molded of red virgin high-impact crystal polystyrene of .110 wall thickness with ultra-violet inhibitors, clear virgin acrylic Plaskolite® panel of .80 thickness, black ABS handle 3.75" length 1.25" projection, two stainless steel hinges 1" x 1.5", zinc-plated steel roller catch and strike plate, all hardware stainless steel, "In Case of Fire Pull Handle Firmly" label, two UV-resistant side labels for easy identification.


Submittal Sheet Catalog Warranty
Installation Instructions JL ADA Guidelines Made in the USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Extinguisher Size
23" x 9¼" x 7" 23-¼" x 9-¼" x 7-¼" 2½, 5, 6, 10 lb.



Wear condensation forms easily or in areas with excessive moister, CATO offers an extinguisher tray (optional above) to further separate the extinguisher from any moister that might accumulate at the bottom of the extinguisher.  This extinguisher tray accessory is designed to allow air to flow under the extinguisher to alleviate corrosion due to condensation.


  • Rust Proof
  • Easily Cleaned
  • No Paint to Fade or Chip
  • Dent Proof
  • Fire Retardant
  • Easy Installation
  • Ultra-Violet Inhibitors
  • All Sizes in Red or White
  • No Sharp Corners


Parts for CATO Pull to Open Fire Extinguisher Cabinets
10505-Z   105-5 White Frame & Door Assembly
10555-Z   105-5 Red Frame & Door Assembly
11005-Z   105-10 White Frame & Door Assembly
11055-Z   105-10 Red Frame & Door Assembly
10603   Black Handle Assembly



CATO is a brand of JL Industries a division of Activar Construction Products Group, Inc. Model C11051-Z










Legacy Documentation: Formerly 105-10 RRT-Z
Technical Data Catalog Made in the USA
