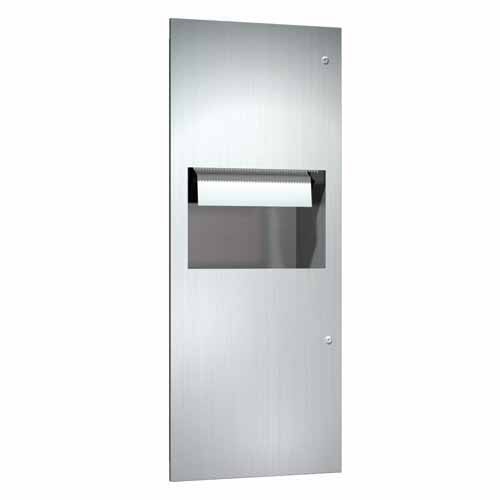

Recessed combination unit includes automatic paper towel dispenser and waste
receptacle. Combination unit is built with 304 stainless steel and has a
#4 satin finish.
* Specifications sheet shown is for the lever model. The dimensions
are the same for the lever model and automatic model.
This combination unit with an automatic paper towel dispenser
and a waste receptacle comes in three models The recessed model 64696A
requires a wall depth of 8 7/8 inches. The semi-recessed model 64696A-6 is
for standard 4 inch walls. This unit is also available as a surface
mounted model 64696A-9.
Doors shall be fabricated of 18 gauge type 304 stainless steel with a #4
satin finish. Full face of door to project 1⁄2" (13 mm) from wall.
And hinged at sides by a concealed heavy duty 3⁄16" (5 mm) diameter stainless
steel piano hinge. Recessed combination unit shall be fabricated of 20
gauge type 304 stainless steel with a 1" (25 mm) side perimeter trim which lays
flat against wall. All doors shall be provided with a tumbler lock keyed alike.
| 64696A AUTOMATIC ROLL PAPER TOWEL DISPENSER AND WASTE RECEPTACLE
Proximity sensing no-touch unit dispenses a pre-set length per cycle
from 8” or 9” (205 or 230 mm) wide, 800 ft. (244 m) long rolls. 8.6 gal.
(32.6 L) stainless steel waste receptacle. Battery operated (4)
D-size.
64696A-6 (Not Shown) Similar to 64696A, but with stainless steel
collar for semi-recessing in 4” (102 mm) walls.
64696A-9 (Not Shown) Similar to 64696A, but with a stainless steel
collar for surface mounting. |
 |
