  • Non-Insulated Fire Rated Door for Drywall
  • Rated by Underwriters Laboratories for 1.5 hour "B" label in wall
  • Frame 16 gage steel, 1" wide, surrounded by galvanized drywall bead
  • Door is 16 gage steel
  • Hinge is exposed, continuous piano hinge
  • Automatic closure, self-latching
  • Latches are spring loaded sliding bolt type
  • Prime coat of rust inhibitive electrostatic powder, baked white enamel.

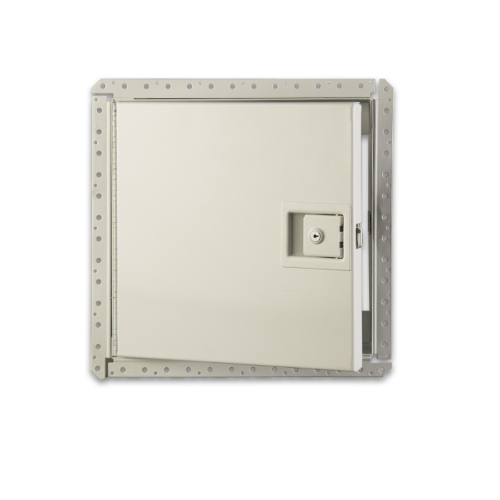

Karp Non-Insulated Fire Rated Access Door for Drywall - KRP-450FR
Description

Karp Non-Insulated Fire Rated Access Door for Drywall KRP-450FR
The KRP-450FR has a textured frame and bead so drywall joint compound can be applied in sufficient thickness to conceal the flange.
The KRP-450 FR is insulated and rated by Underwriters Laboratories for 1.5 hours "B" label in walls, and may be used in a 2 hour fire rated wall assembly.

UL Listing

W x H
Wall Opening
Cam Latch
W x H
Wall Opening
Cam Latch
8 x 8
8⅜ x 8⅜
1
24 x 24
24⅜ x 24⅜
1
12 x12
12⅜ x 12⅜
1
30 x 22
30⅜ x 22⅜
1
14 x 14
14⅜ x 14⅜
1

30 x 30
30⅜ x 30⅜
1
16 x 16
16⅜ x 16⅜
1

36 x 24
36⅜ x 24⅜
2
18 x 18
18⅜ x 18⅜
1

36 x 36
36⅜ x 36⅜
2

Doors larger than or equal to 36" are subject to oversize or LTL shipping charges.

 Technical Data  Karp Catalog
