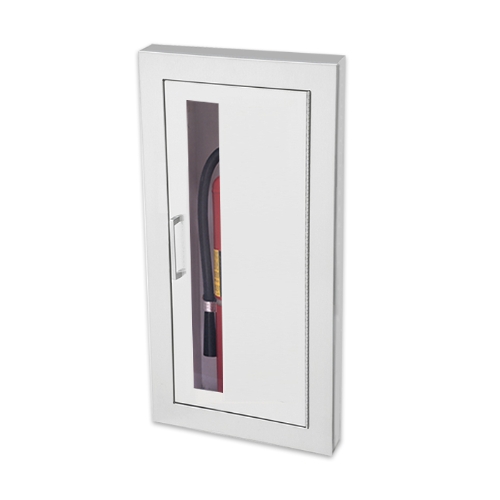

JL Academy Aluminum 1026V10 Semi-Recessed 10 lbs. Fire Extinguisher Cabinet

The Academy Series is a durable, attractive aluminum cabinet that stands up to conditions in commercial buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge.  All models have 1-3/4" trim on face and door. Semi-Recessed with 1-1/2" square edge. The handle protrudes 5/8".  Tub is constructed of cold rolled steel with white powder coated finish. ADA Compliant.

The 1026V10 comes with clear acrylic glazing standard.  The 1026V17 comes with clear tempered glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 6"	13-7/8" x 27-3/8	11½" x 25" x 4-5/8"	2½, 5, 6, 10 lbs.

Available Options:

• Full Glass or Solid Door
• SAF-T-LOK™ Keyed Cylinder Lock
• Stainless Steel
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Anodized Color Finishes - Dark Bronze
• Etched or Engraved Lettering in Glass or Metal


Color Finishes	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1026V10
C1026V17
