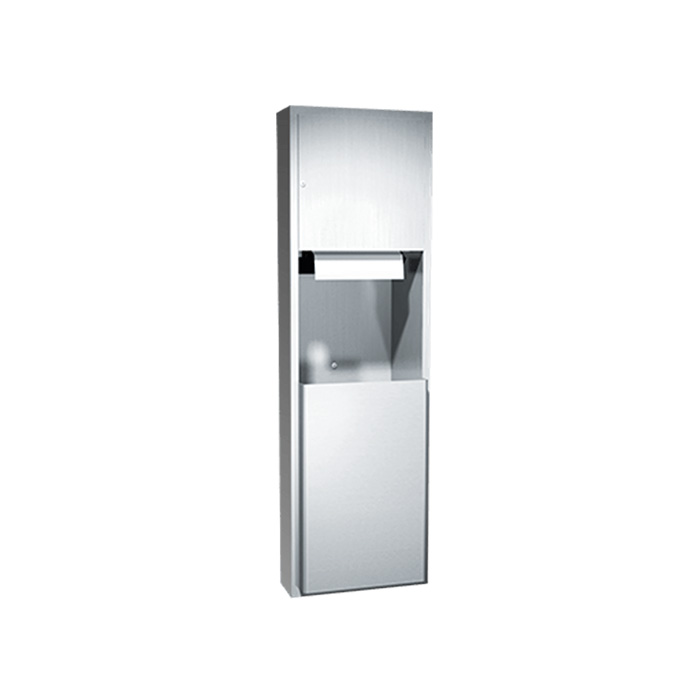

The American Specialties Inc., ASI 04692AC-6 stainless steel semi recessed mounted
automatic paper towel dispenser and waste receptacle holds an 8" wide roll up to 800 ft. long. Waste Receptacle has a 17 Gallon (64 L) Capacity.
The proximity sensing no-touch unit dispenses a pre-set length per cycle and is
powered by an internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz
and providing output of 5VDC @ 1A. Has stub roll capability for continuous
dispensing. Keyed (alike) tumbler lock on paper towel dispenser to prevent
theft and vandalism. ADA Compliant.
Dimensions:
Overall Dimensions:
17-1⁄4" x 56" x 10-1⁄4"
438
x 1422 x 260 mm
Wall Opening:
15-3⁄4" x 54-1⁄2" x 4"
400 x 1384 x
102 mm
American Specialties, Inc. (ASI) Model: 10-04692AC-6
