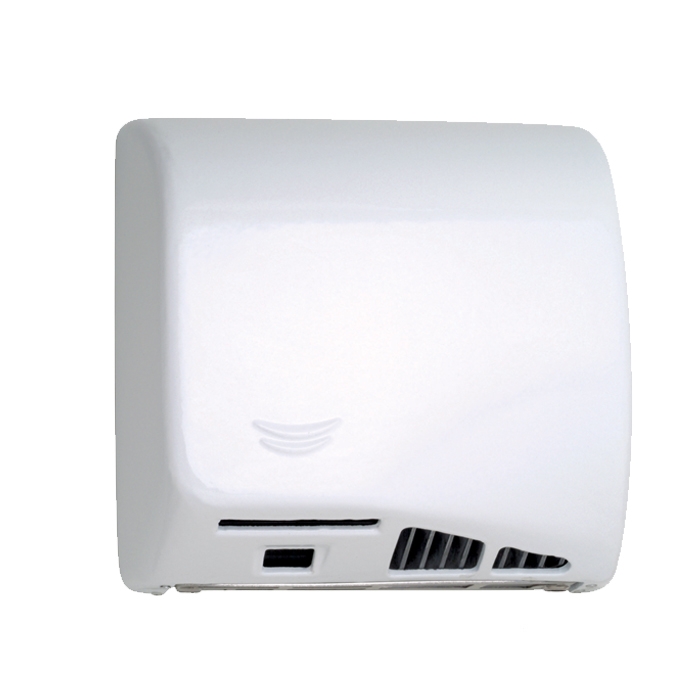

The Speedflow® Series is designed to meet all remodeling and new construction needs as well as delivering the best in high performance. This automatic hand dryer will dry hands in 10 to 15 seconds, is multli-voltage out of the box, and is the only surface mounted automatic hand dryer that is ADA compliant.

DRYING TIME
With a 1/3 HP motor running at 8,200 RPM, this high performance automatic hand dryer boast a drying time of 10 to 15 seconds.

ADA COMPLIANT
Because this automatic hand dryer is only 4 inches deep, it is the only ADA (conforms to ADAAG projection) compliant surface mounted hand dryer in the industry. This automatic hand dryer meets ADA standards without having to recess the dryer into the wall.

UNIVERSAL VOLTAGE
Installing this automatic hand dryer during new construction, remodeling, or replacing an existing surface mounted hand dryer is made simple by automatically adjusting to the voltage of the existing wiring. This dyer will automatically adjusts to 110-120, 208, and 220-240 voltages, out of the box, with no adjustment required.

VANDAL RESISTANT
The Speedflow automatic hand dryer incorporates a vandal resistant design that includes a metal 1/6" thick cover with 2 vandal-proof locks screws and lock with special Speedflow wrench.
