Questions?
Quantity Discounts
Call Us 800-608-6568
Quantity:
  • White
  • Rust Proof
  • No Sharp Corners
  • No Glass to Shatter
  • No Paint to Fade or Chip
  • Designed to Drain Easily
  • Ventilated
  • Fire Retardant
  • Will Not Dent
  • Easily Cleaned
  • Built-in Lock
  • Easy Installation
  • High Density Injection Molded
  • Hammer Assemble Included
  • Polypropylene
  • Available in 3 Sizes
  • Made in the USA
  • Description

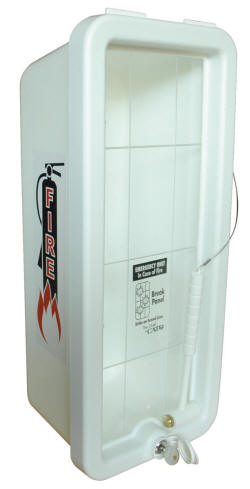

    PLASTIC FIRE EXTINGUISHER CABINET
    This plastic fire extinguisher cabinet, body and frame, is made with injection molded white virgin high-impact crystal polystyrene (.110 thickness) with ultra-violet inhibitors. The ultra-violet inhibitors prevent the color from fading. The clear virgin acrylic Plaskolite® panel (.080 thickness) can be broke with the hammer or with your elbow and will not cut you.

    Technical Data

    SIZES

    • PC-105-5 is for 5 or 2½ lbs. extinguisher
    • PC-105-10 is for 10 lbs. extinguisher
    • PC-105-20 is for 20 lbs. extinguisher

    LOCK & KEY
    The chromium plated brass safety lock and key with weather-proof protective lock cover allows designated personnel access for periodic maintenance of the fire extinguisher.

    HAMMER
    The polypropylene plastic injected molded hammer with flexible torsion, ribbed grip surface and clear nylon-jacketed stainless steel mechanical cable is include with the cabinet and is used to break the clear acrylic pane.

    SAFETY
    With no sharp edges or glass to brake, this plastic fire extinguisher cabinet is one of the safest choices available.

    MOUNTING
    All though this cabinet is normally surface mounted, it ca be recessed. NOTE: Cabinet does not come with any molding to recess mount the cabinet. Because of this plastic fire extinguisher cabinet’s single wall design, it take slightly less space to store the fire extinguisher.

    These fire extinguisher cabinets are the Chief Plastic Fire Extinguisher Cabinet by Cato backed by Strike First Corporation.

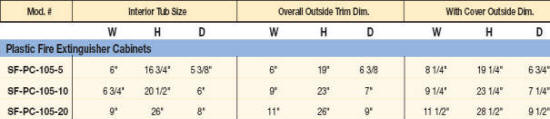

    PLASTIC FIRE EXTINGUISHER CABINET DIMENSIONS

    Model # Interior Tub Overall Outside Trim With Cover Outside
      W H D W H D W H D
    Plastic Fire Extinguisher Cabinets
    PC-105-5 6" 16 3/4" 5 3/8" 6" 19" 6 3/8" 8 1/4" 19 1/4" 6 3/4"
    PC-105-10 6 3/4" 20 1/2" 6" 9" 23" 7" 9 1/4" 23 1/4" 7 1/4"
    PC-105-20 9" 26" 8" 11" 26" 9" 11 1/2" 28 1/2" 9 1/2"
