Description

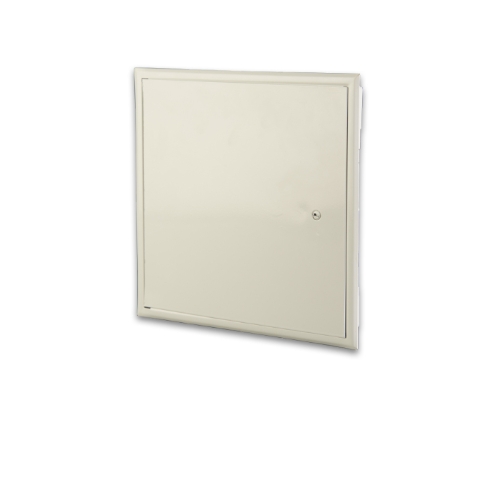

Karp Press-Fit Access Door- PF

The Press-Fit door is a unique lightweight door that installs easily by bending the tabs on the return back to grip the drywall. The frame, return and doorstop are one-piece construction with a beveled frame resulting in an attractive finished look.

Specifications

  • Trim, return and doorstop shall be one piece construction of

    22 gauge steel. On doors 18" x 18" and larger, the door shall be 20 gauge steel. On doors smaller than 18" x 18", the door shall be 22 gauge steel.

  • Trim shall be 1/2" wide and beveled.

  • Hinge shall be concealed, continuous piano hinge.

  • Latches shall be flush and screwdriver operated or cylinder lock with dustshutter (**Optional, Listed above).

  • Return shall have bendable tabs for easy installation into drywall.

  • Prime coat finish.

STANDARD SIZES:

 In Stock and Ready to Ship
W x H Wall OpeningCam Latch W x HWall OpeningCam Latch
8 x 88-13/16" x 8-13/16"1 18 x 18 18-13/16" x 18-13/16" 2
12 x 1212-13/16" x 12-13/16"1  24 X 24 24-13/16" X 24-13/16"2
14 X 14 14 -13/16" X 14-13/16"  1



 Technical Data  Karp Catalog

Follow the globe to download a PDF of Karp's Environmental Statement
 Call for custom sizes, price and availability.
W x HWall OpeningCam Latch W x HWall OpeningCam Latch
6 x 66¼ x 6¼1 20 x 2420¼ x 24¼4
8 x 88¼ x 8¼1 20 x 30**20¼ x 30¼4
8 x 128¼ x 12¼1 22 x 2222¼ x 22¼4
10 x 1010¼ x 10¼3 22 x 30**22¼ x 30¼4
12 x 1212¼ x 12¼3 22 x 36**22¼ x 36¼5
12 x 1612¼ x 16¼3 24 x 2424¼ x 24¼4
12 x 1812¼ x 18¼3 24 x 30**24¼ x 30¼4
12 x 2412¼ x 24¼4 24 x 36**24¼ x 36¼5
14 x 1414¼ x 14¼3 24 x 48**24¼ x 48¼6
16 x 1616¼ x 16¼3 30 x 30**30¼ x 30¼6
16 x 2016¼ x 20¼3 36 x 36**36¼ x 36¼6
18 x 1818¼ x 18¼3 48 x 48**48¼ x 48¼12
18 x 2418¼ x 24¼4
18 x 36**18¼ x 36¼5
 Call for custom sizes, price and availability.
W x HWall OpeningCam Latch W x HWall OpeningCam Latch
6 x 66¼ x 6¼1 20 x 2420¼ x 24¼4
8 x 88¼ x 8¼1 20 x 30**20¼ x 30¼4
8 x 128¼ x 12¼1 22 x 2222¼ x 22¼4
10 x 1010¼ x 10¼3 22 x 30**22¼ x 30¼4
12 x 1212¼ x 12¼3 22 x 36**22¼ x 36¼5
12 x 1612¼ x 16¼3 24 x 2424¼ x 24¼4
12 x 1812¼ x 18¼3 24 x 30**24¼ x 30¼4
12 x 2412¼ x 24¼4 24 x 36**24¼ x 36¼5
14 x 1414¼ x 14¼3 24 x 48**24¼ x 48¼6
16 x 1616¼ x 16¼3 30 x 30**30¼ x 30¼6
16 x 2016¼ x 20¼3 36 x 36**36¼ x 36¼6
18 x 1818¼ x 18¼3 48 x 48**48¼ x 48¼12
18 x 2418¼ x 24¼4
18 x 36**18¼ x 36¼5
