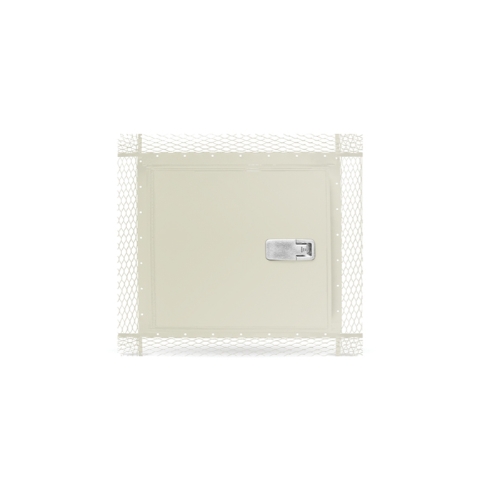

Karp Insulated Exterior Access Door - MXPL
Karp MX Insulated Exterior Access Door is engineered to withstand years of outdoor exposure. This door is made of galvanized steel with a stainless steel hinge. These components along with Karp's electrostatic rust-inhibitive powder finish provides two durable protective layers. Karp arc-welds and grounds smooth the corners of the trim and pan, and uses a closed cell neoprene gasket to insure a watertight seal between the door and the frame. The door is insulated with styrofoam specifically designed for exterior use giving the door exceptional resistance to water and water vapor. These layers of engineering give the MXPL Insulated Exterior Access Door long term performance in even the most severe moisture environments. Door is designed with a Plaster / Stucco Flange.
Specifications:
Frame and door are 18 gauge galvanized steel. The door is welded with a watertight pan, the corners of trim are welded and ground smooth. The gasketing between the door and frame is 3/8" wide by 1/8" thick closed neoprene gasketing. Stainless Steel Piano Hinge.
Latches are keyed Lift & Turn Compression Latch including cup sealing gasket finisihed in textured chrome. The finish is prime coat of rust inhibitive electrostatic powder, baked white enamel.
|
|
|
H x W |
Wall Opening |
Stud Latch |
|
H x W |
Wall Opening |
Cam Latch |
|
12 x 12 |
12⅜ x 12⅜ |
1 |
|
30 x 30 |
30⅜ x 30⅜ |
2 |
|
18 x18 |
18⅜ x 18⅜ |
1 |
|
36 x 24 |
36⅜ x 24⅜ |
2 |
| 24 x 24 |
24⅜ x 24⅜ |
2 |
|
36 x 36 |
36⅜ x 36⅜ |
2 |
| 30 x 22 |
30⅜ x 22⅜ |
2 |
|
|
|
|
