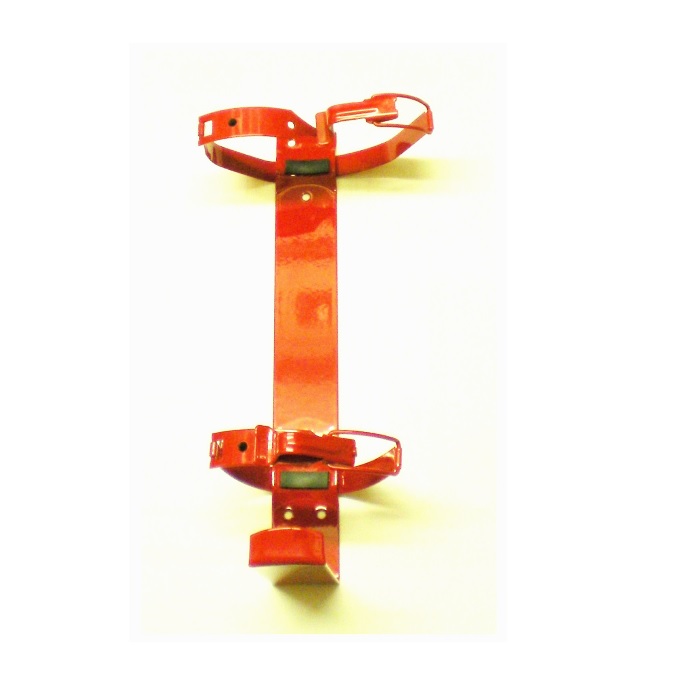

JL MB846A Fire Extinguisher Bracket (all red)

The JL MB846A fire extinguisher all red mark bracket is designed for the JL Industries Cosmic 10E and Galaxy 10 10 lbs. fire extinguishers.

Submittal Sheet

JL Catalog

Detail Sheet

Overall Size: 15-1/2” x 7”
Length of Back Plate: 15”
Width of Plate: 2”
Height of Front Plate: 3/4”
Length of Bottom Plate: 5-1/2”
Strap Width: 3/4”
Strap Diameter: 5-5/32"
Hole Size: 1/4”
Hole Locations: Dual Holes - 1/2” from top and 1/2” from sides. 13” from top, 1/2” from sides.
Single Holes 2-1/2” from top, centered (1” from sides). 14” from top, centered (1” from sides).
