  • JL Industries 1527G25
  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • Recess Mounted - ADA Compliant
  • SAF-T-LOK™ - Keyed Cylinder Lock

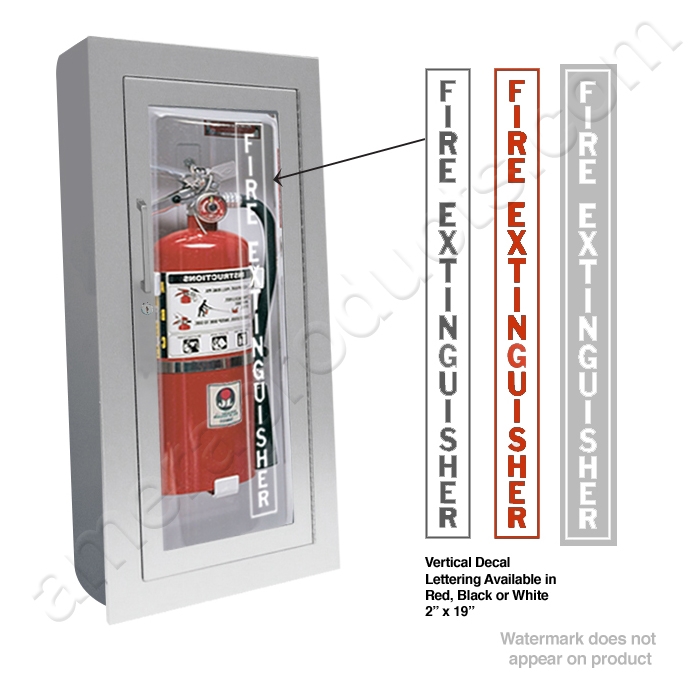

  • "Fire Extinguisher" decal (optional above)

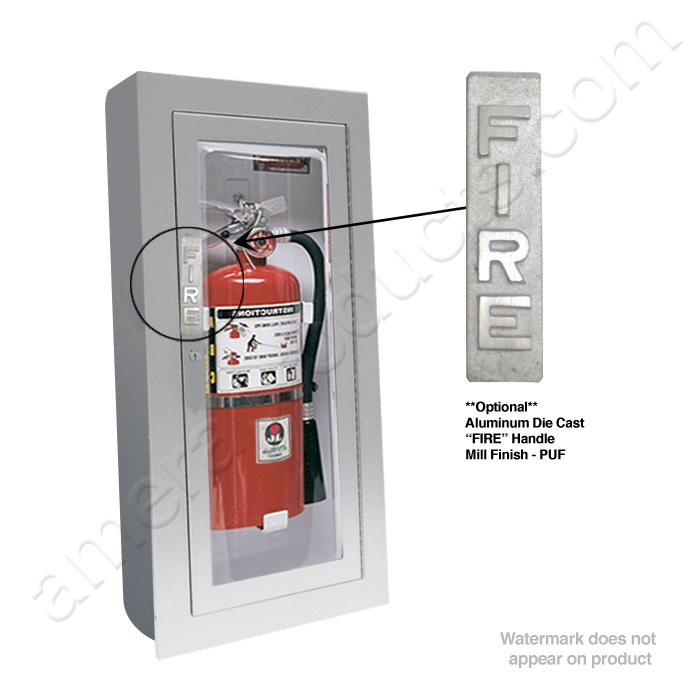

  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • Made in America

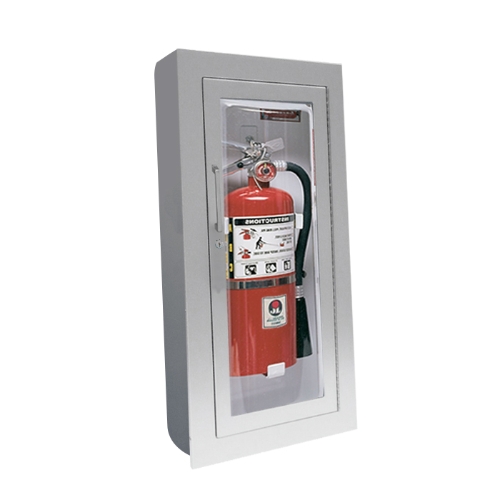

JL Clear VU 1527G25 Recess Mounted Aluminum 10 lbs. Fire Extinguisher Cabinet with Acrylic Bubble with Lock

Description

The JL Industries 1527G25 Clear VU Series is an attractive bubble cabinet made of aluminum with an acrylic bubble on front of cabinet. 180º extinguisher visibility. Semi-Recess Mounted - 3" Rolled Trim.  The Bubble extends an additional 2-1/2" projection. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Aluminum Finish Options



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
10-1/2"x 24" x 4" 13-7/8"x 27-3/8 x 5-1/2" 11-1/2 x 25"x 1-1/8" 2½, 5, 10 lbs.


Available Options:

  • Stainless Steel, Steel, Bronze or Polished Brass
  • Additional Bubble Colors - Bronze or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

JL Industries a division of Activar Construction Products Group, Inc. Model C1527G25
