  • Holds 2½ lbs. or 5 lbs. Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • "Fire Extinguisher" Decal or Lettering (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America

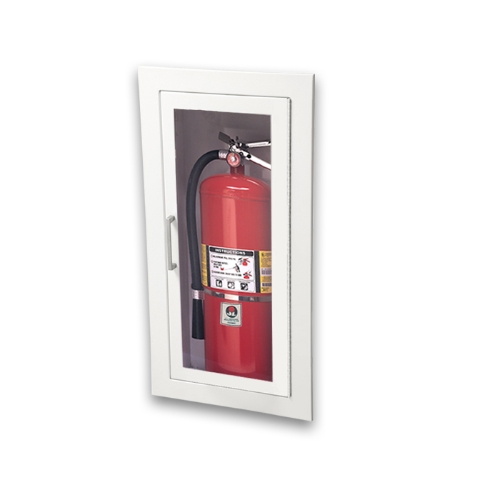

JL Ambassador 8115F10 Recessed 5 lbs. Fire Extinguisher Cabinet

Description

The ambassador series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings. Door and Trim are cold rolled steel with white powder-coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. The door comes with full panel of clear acrylic glass. Cabinet and handle protrude 1-1/8" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
9" x 18" x 5½" 12-3/8" x 21-3/8 " x 1-1/8" 10" x 19" x 5½" 2½, 5 lbs.

Available Options:

  • Vertical Duo or Solid Door
  • Stainless Steel
  • Safety Lock
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal
