  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • Flush Pull Handle
  • ADA Compliant
  • "Fire Extinguisher" decal (optional above)
  • One Year Warranty
  • Made in America
Lead-Time
3 Working Days

Tempered Glass
Option adds Lead-Time

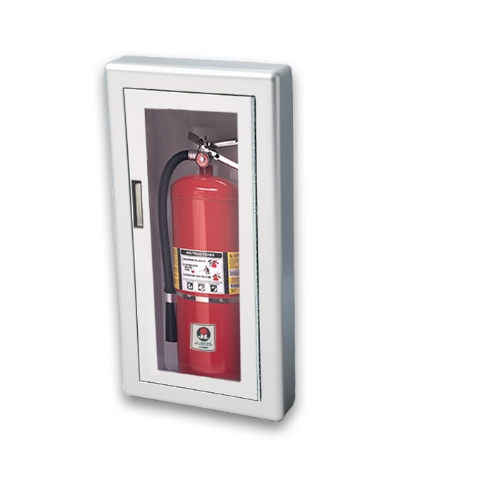

JL Academy Aluminum 1022F10 Semi-Recessed 4" Rolled Edge with Flush Handle 10 lbs. Fire Extinguisher Cabinet

Description

The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Semi-Recessed with 4" Rolled Edge and flush handle. The door comes with a full panel of clear acrylic glass. Cabinet and handle protrude 4" from the surface. Tub is constructed of cold rolled steel with white powder coated finish. ADA Compliant.

The 1022F10A comes with clear acrylic glazing standard.  The 1022F17A comes with clear tempered glass glazing (optional above)



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim

W x H
Wall Opening

W x H x D
Extinguisher Size
10-1/2" x 24 " x 6" 13-7/8" x
27 x 4"
11½"
x 25" x 3"
2½,
5, 10 lbs.


Available Options:

  • Vertical Duo or Solid Door
  • Stainless Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Anodized Color Finishes - Dark Bronze
  • Etched or Engraved Lettering in Glass or Metal


JL Industries a division of Activar Construction Products Group, Inc. Model C1022F10A

JL Industries a division of Activar Construction Products Group, Inc. Model C1022F17A
