  • Inverted "Y" Blades with security Grille Meets up to 350 ft. lb. Impact Rating for Severe Windstorm Rating
  • Carries FBC Approval
  • Weatherproof Electro-Galvanized Finish for Exterior Applications
  • 18 gauge CRS Frame and Blades with paintable electro galvanized finished
  • Minimum size 6" x 6", maximum size 24" x 64"
  • Door 1-3/4"
  • Security Grille is welded to the interior and exterior of louver with 13/16" square openings 1" on center
  • Standard Electro-Galvanized Base
  • Standard Color Mineral Bronze

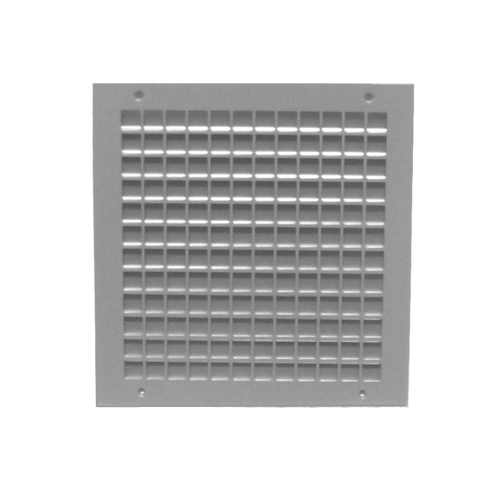

Air Louvers 1500A-HRC Hurricane - Rated "Y-Blade" Door Louver

Description

Inverted "Y" Blades with Secuirty Grille Meets up to 350 ft. Lb. Impact Rating for Severe Windstorm Rating and Carries FBC Approval. Includes Weatherproof Electro-Galvanized Finish for Exterior Applications.

Construction and Materials:
18 gauge CRS frame and blades with paintable electro galvanized finish; 12 gauge CRS security grille. Minimum size 6" x 6". Maximum size 24" x 64".
Louvers: 2 rows of inverted, split "Y" blades with 1" blade spacing are attached to welded frame with interlocking construction. Non-Vision Design.
Security Frame: Security grille is welded to the interior and exterior of louver with 13/16" square openings 1" on center. Thru-bolted to door.
Door: 1-3/4". For 1-3/8" doors, consult factory. Door cutout = order size.
Fasteners: #8-32 Phillips head htru-bolts with blank head one side.
Finish: Standard Electro-Galvanized finish for Exterior use with powder coat finish.

warranty Warranty



1500A-HRC Hurricane Rated Louver
Opening Size
W x H
Opening Size
W x H
12" x 12" 20 x 10"
12" x 18" 24" x 12"
12" x 24" 24" x 18"
18" x 12" 24" x 24"
18" x 18" 24" x 60"
18" x 24" 24" x 64"
18" x 64"

Call for Custom Sizes, Price and Availability

Available Options:

  • Additional Powder Coat Finishes:
    (G) Grey (BK) Flat Black, (W) White, (SB) SC Beige, (SI) Silver, (S) Sand, (AB) AMS Beige,  (R) Red, (GH) Gray Hammertone
  • Color Match any Color with Paint Chip
  • Optional Insect or Bird Screen Listed above
  • Custom Size or Custom Shape
